Imported Waterproof 10-String Solar PV DC Combiner Box – 10 Inputs / 1 Output

Imported Waterproof 10-String Solar PV DC Combiner Box – 10 Inputs / 1 Output

The Imported Waterproof 10-String Solar PV DC Combiner Box is designed to safely combine up to 10 solar PV string inputs into a single DC output for connection to a solar inverter. It provides a clean, organized and protected solution for medium and large solar PV installations.

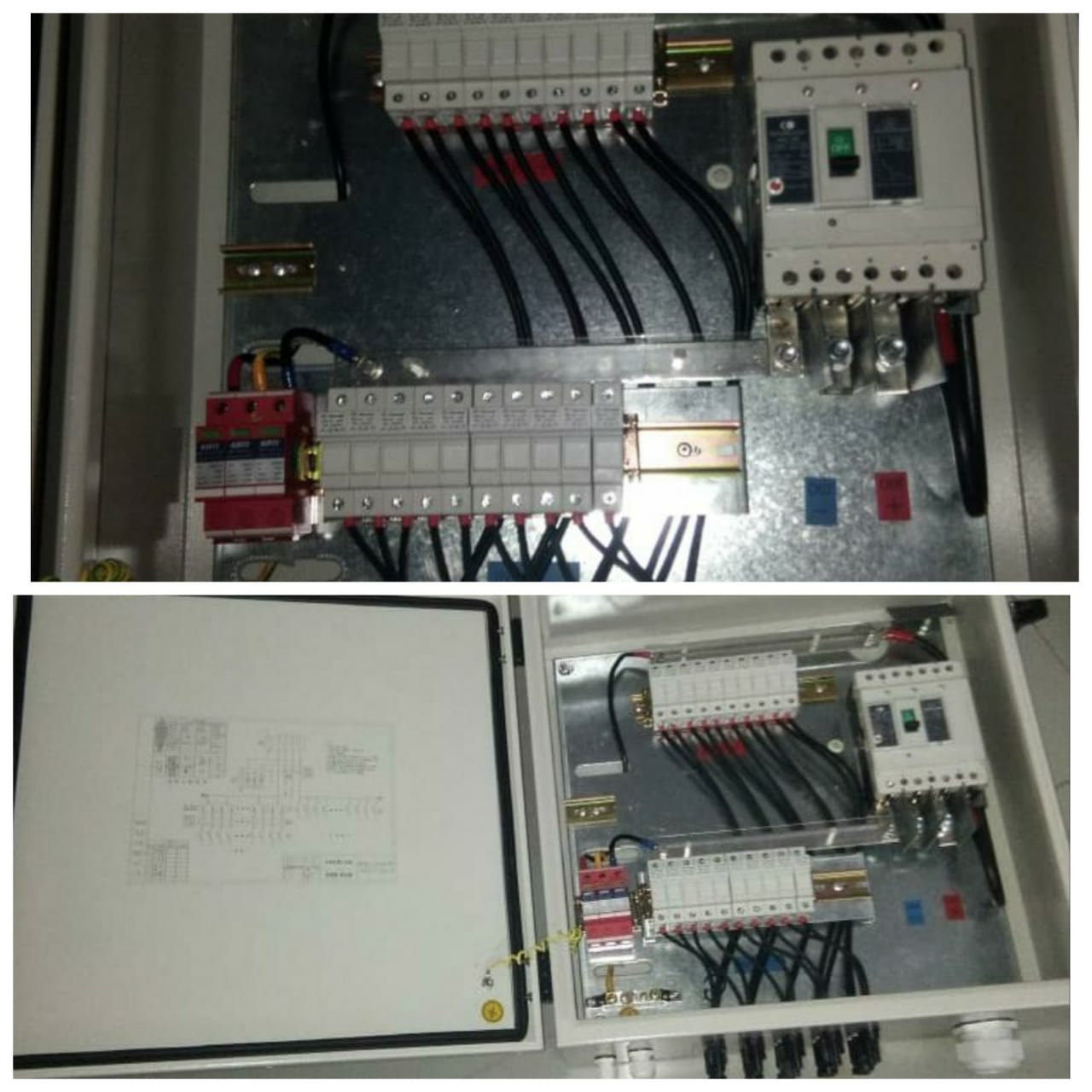

The combiner box comes fully equipped with built-in DC protection components, including individual string fuses, DC surge protection devices (SPDs), a main DC output breaker and MC4 input connectors.

Its weather-resistant enclosure makes it suitable for outdoor solar installations, helping protect internal electrical components against dust, moisture and environmental conditions.

Key Features

• 10 Solar PV String Inputs
• 1 Combined DC Output
• Waterproof and weather-resistant imported enclosure
• Individual DC fuse protection for each PV string
• Built-in DC Surge Protection Devices (SPD)
• Built-in Main DC Output Breaker

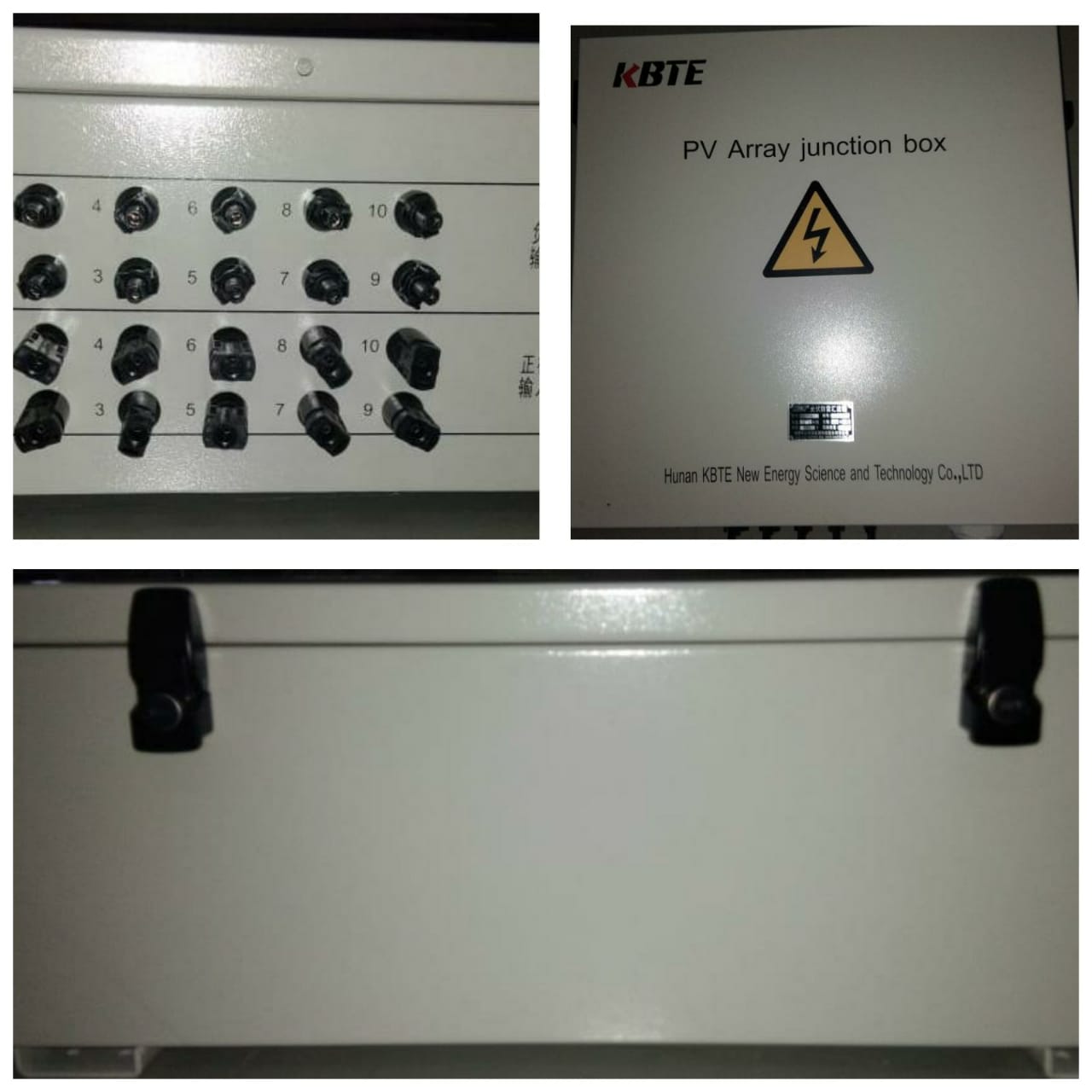

• MC4 connectors for PV string inputs
• Dedicated earthing/grounding arrangement
• Organized internal wiring and termination
• Easy installation and maintenance
• Designed for safe PV string combining and distribution
• Suitable for commercial, industrial, agricultural and solar pumping systems

Built-In Protections

Each PV string is individually protected through dedicated DC fuses, helping isolate faulty strings and protect the system against overcurrent conditions.

The integrated DC SPDs provide additional protection against transient overvoltages and surge events, while the main DC breaker provides switching, isolation and protection for the combined DC output before connection to the inverter.

Applications

Suitable for:

• Solar water pumping systems
• Commercial solar PV systems
• Industrial solar installations
• Agricultural and tube-well solar systems
• Large PV arrays
• On-grid solar systems
• Off-grid solar systems
• Solar pump inverters/VFDs

Complete Protection in One Box

The 10-String Solar PV DC Combiner Box provides a professional solution for combining multiple PV strings while incorporating the essential DC protection and isolation components in a single weather-resistant enclosure.

Configuration: 10 PV Strings Input → 1 Combined DC Output

Included Components: String Fuses | DC SPD | Main DC Breaker | MC4 Input Connectors | Earthing/Grounding Arrangement
