JNTECH dV/dt Filter for 2.2kW–7.5kW Solar Pump Inverters/VFDs

JNTECH dV/dt Filter for 2.2kW–7.5kW Solar Pump Inverters/VFDs

The JNTECH dV/dt Filter for 2.2kW–7.5kW Solar Pump Inverters is designed to provide additional protection for water pump motors, particularly in installations where there is a long cable distance between the solar pump inverter and the motor.

Installed at the output side of the JNTECH solar pump inverter/VFD, the dV/dt filter helps reduce rapid voltage rise, high-frequency voltage spikes and electrical stress produced by the inverter’s PWM output.

Compatible Inverter Range

2.2kW | 4kW | 5.5kW | 7.5kW JNTECH Solar Pump Inverters/VFDs

Key Features

• Designed for JNTECH 2.2kW–7.5kW Solar Pump Inverters
• Helps reduce dV/dt voltage stress
• Helps suppress voltage spikes at pump motor terminals
• Provides additional protection for motor winding insulation
• Recommended for long inverter-to-pump cable distances
• Helps improve reliable operation of submersible pump motors
• Suitable for three-phase water pumping systems
• Designed for solar tube-well and bore-well applications
• Easy integration with compatible JNTECH solar pumping systems

Applications

Suitable for submersible pumps, tube wells, bore wells, agricultural irrigation systems, livestock water supply and other solar water pumping applications, particularly where long motor cables are required.

Installation

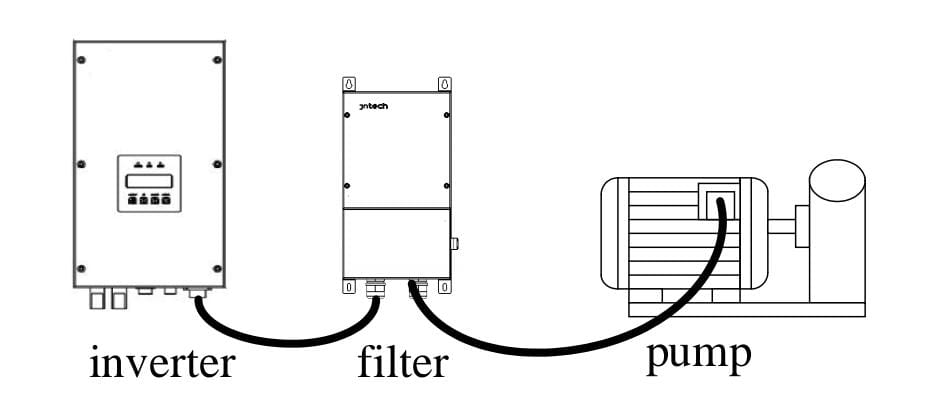

JNTECH Solar Pump Inverter/VFD → dV/dt Filter → Pump Motor

The dV/dt filter should be properly selected according to the inverter rating, motor power, operating voltage, output current and motor cable length.
